| Place of Origin: | CHINA |
|---|---|
| Brand Name: | NOKIA |
| Model Number: | 473842A.101 |
| Minimum Order Quantity: | 5 |
| Price: | Negotiatable |
| Packaging Details: | Standard Export Packing |
| Delivery Time: | 5-8 work days |
| Payment Terms: | L/C, T/T, D/P |

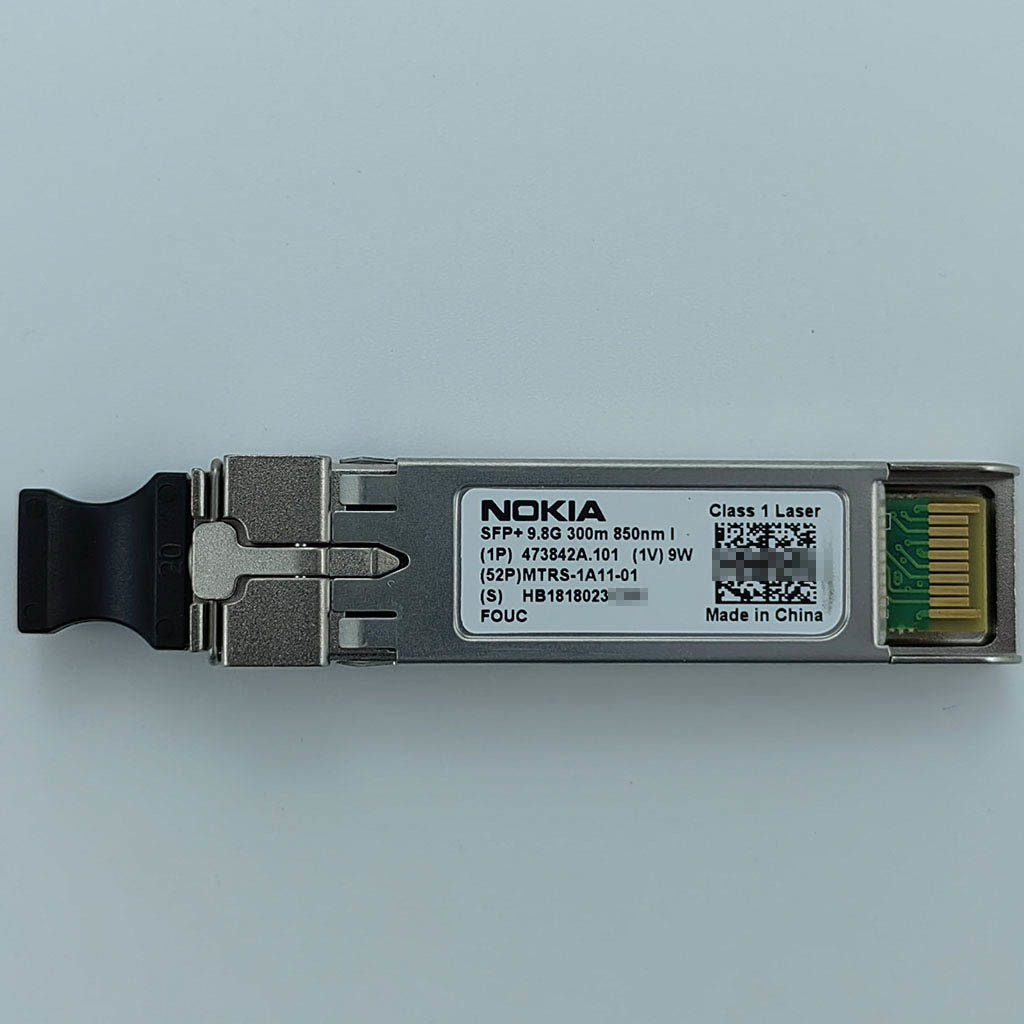

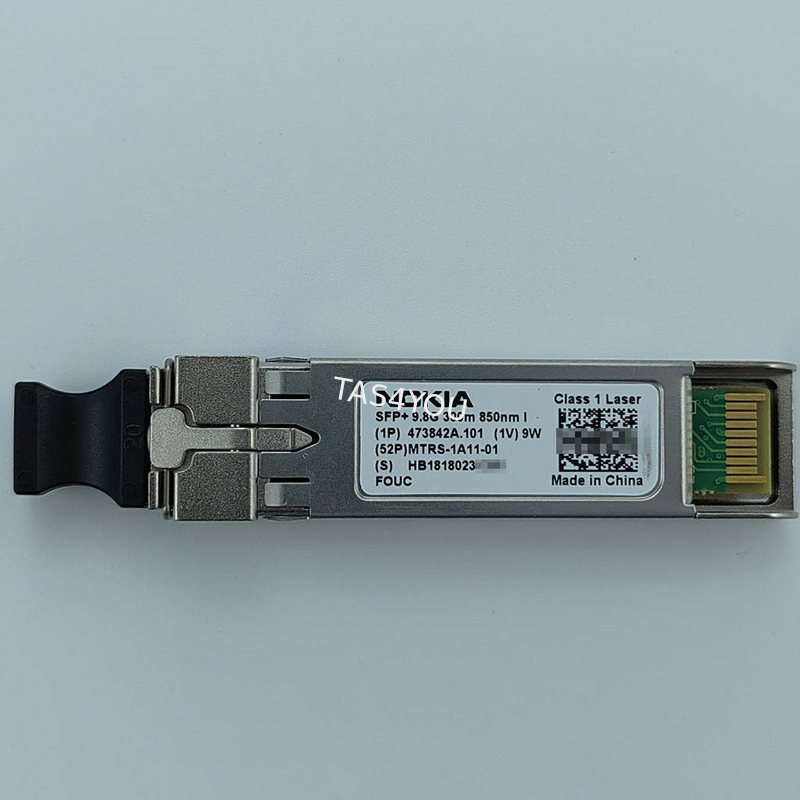

NOKIA FOUC SFP+9.8G 300m 850nm I 473842A.101
The Nokia 473842A.101 850nm VCSEL 10Gigabit Transceiver is designed to transmit and receive serial optical data links
up from 8.5 Gb/s to 10.51875 data rate over multimode fiber. The Transceiver is compliant with FC-PI-4, 10G FC, IEEE
802.3ae, SFF-8432, and applicable portions of SFF-8431. The transmitter converts serial CML electrical data into serial
optical data. An open collector compatible Transmit Disable (Tx_Dis) is provided. When TX_DIS is asserted High,
Transmitter is turned off. The receiver converts serial optical data into serial CML electrical data. An open collector
compatible Loss of Signal is provided. The RX_LOS signal indicates insufficient optical power for reliable signal reception
at the receiver. Digital diagnostics functions are available via a 2-wire serial interface, as specified in SFF-8472.
Features
Applications
Compliance
Specifications
