Name: NOKIA AOMB QSFP+4x10G 300m MM E-temp 474899A.101
Brand: . TAS4YOU .
SKU: 474899A.101
Availability: InStock

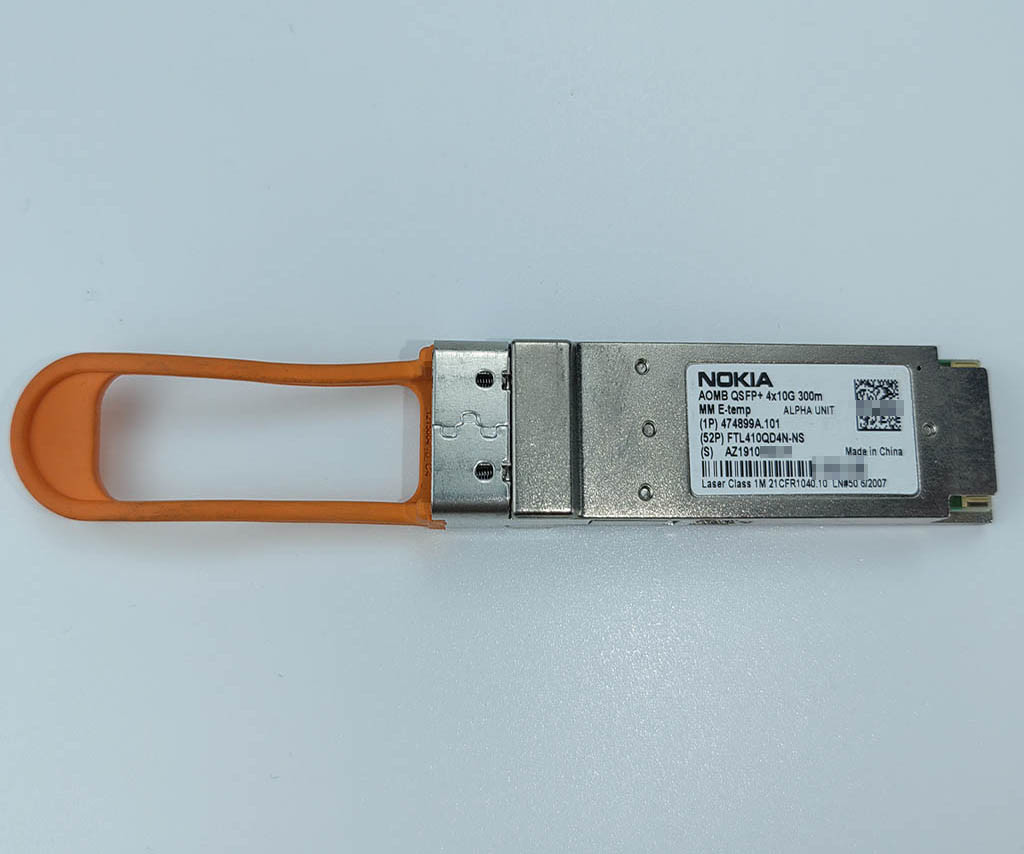

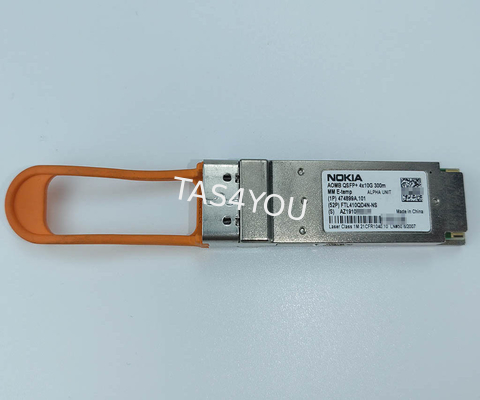

NOKIA AOMB QSFP+4x10G 300m MM E-temp 474899A.101

NOKIA AOMB QSFP+4x10G 300m MM E-temp 474899A.101 0

The Nokia 474899A.101 QSFP+ optical transceiver modules are designed for use in 40 Gigabit per second links over parallel multimode fiber, including breakout to four 10 Gigabit per second links. They are compliant with the QSFP+ MSA and IEEE 802.3ba 40GBASE-SR4 and compatible with IEEE 802.3ba 10GBASE-SR. Digital diagnostics functions are available via an I2C interface, including Tx and Rx powering monitoring. The optical transceiver is RoHS compliant as described in Application Note AN-2038. QSFP+ optical transceiver modules are designed for use in 40 Gigabit per second links over parallel multimode fiber, including breakout to four 10 Gigabit per second links. They are compliant with the QSFP+ MSA and IEEE 802.3ba 40GBASE-SR4 and compatible with IEEE 802.3ba 10GBASE-SR. Digital diagnostics functions are available via an I2C interface, including Tx and Rx powering monitoring. The optical transceiver is RoHS compliant as described in Application Note AN-2038.

Features

Genuine Nokia 474899A.101
Four-channel full-duplex transceiver module
Hot-pluggable QSFP+ form factor
Maximum link length of 300m on OM3 Multimode Fiber (MMF) and 400m on OM4 MMF
Multirate capability: 1.06Gb/s to 10.5Gb/s per channel
Unretimed XLPPI electrical interface
Maximum power dissipation < 1W
Reliable VCSEL array technology
Built-in digital diagnostic functions, including Tx and Rx power monitoring
Extended operating case temperature range -5°C to 85°C
Single 1×12 MPO receptacle
RoHS compliant

Applications

40GBASE-SR4 40G Ethernet
Breakout to 10GBASE-SR Ethernet
Proprietary interconnections

Specifications

Part Number: 474899A.101
MPN: FTL410QD4N-NS
Form Factor: QSFP+
Data Rate (max): 41.2 Gb/s
Distance: 300 m
Protocol: 10x Fibre Channel Compliant 40G Ethernet Compliant IB QDR Compatible
Low End Case Temperature (°C): -5
High End Case Temperature (°C): 85
Diagnostics: Digital
Transmitter: 4x VCSEL
Receiver: PIN
Voltage Supply: 3.3
Connector: MPO (MTP12)
Wavelength: 850nm Band

Place of Origin:	CHINA
Brand Name:	NOKIA
Model Number:	474899A.101

Minimum Order Quantity:	5
Price:	Negotiatable
Packaging Details:	Standard Export Packing
Delivery Time:	5-8 work days
Payment Terms:	L/C, T/T, D/P
